Insert injection molding is a specialized manufacturing process that integrates metal or other components into plastic parts during the molding process. This technique is widely used across various industries, including automotive, electronics, medical devices, and consumer products, to enhance the functionality, strength, and durability of molded components. Unlike traditional injection molding, which produces purely plastic parts, insert molding injection allows manufacturers to embed metal fasteners, threaded inserts, bushings, or even electronic components within the plastic, creating a single, integrated assembly. This reduces the need for secondary assembly operations, improves part reliability, and streamlines production efficiency. By encapsulating inserts within plastic, this method ensures a strong bond between materials, enhancing both mechanical performance and resistance to wear and tear.

How Insert Molding Injection Works

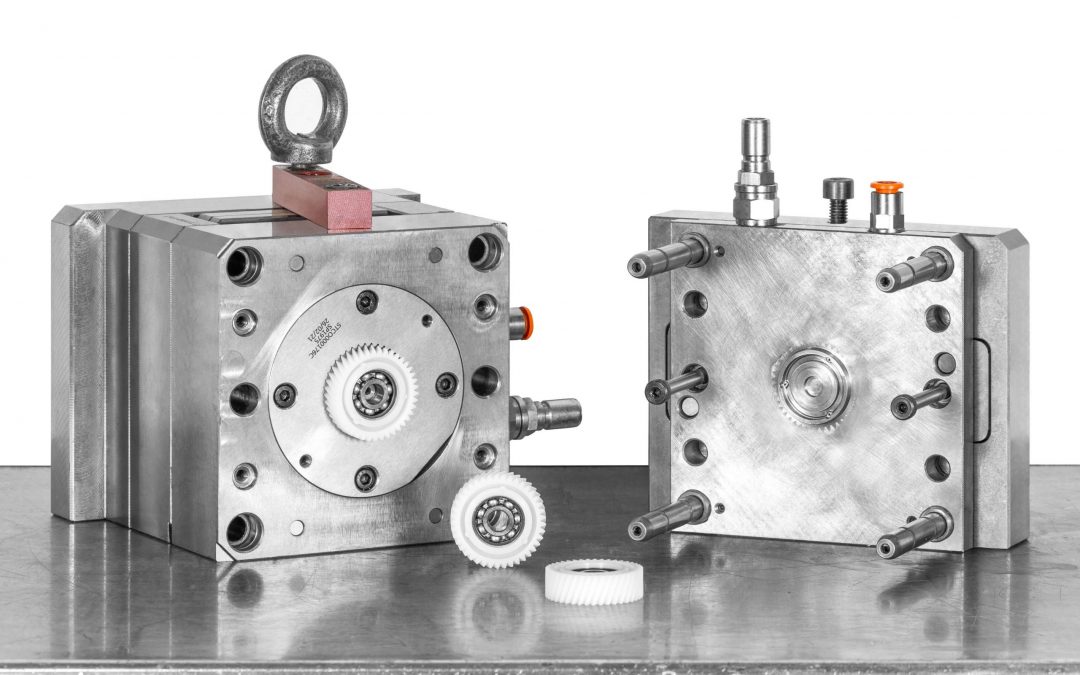

Insert molding injection follows a process similar to traditional injection molding, with the primary difference being the placement of a pre-formed insert into the mold cavity before the molten plastic is injected. The process begins with the precise positioning of the insert, which can be done manually or using robotic automation for high-volume production. Once the insert is secured, molten plastic is injected into the mold, completely surrounding and bonding with the insert. The plastic solidifies and fuses with the insert, forming a single integrated component. After cooling, the part is ejected from the mold, and the result is a durable plastic component with embedded functionality. This method ensures high repeatability and consistency, making it ideal for applications where strength, conductivity, or precision alignment is essential. Manufacturers can customize the process to accommodate a variety of insert types, including brass, stainless steel, and even ceramic or fiber-reinforced materials, depending on the end-use application.

Advantages of Injection Molding Inserts in Product Design

Injection molding inserts provide enhanced strength by reinforcing the plastic component with a metal or composite insert. This is particularly valuable for parts that require increased load-bearing capacity, such as automotive components, aerospace fasteners, and industrial equipment housings. By embedding inserts directly within the plastic, manufacturers eliminate the need for additional hardware, such as nuts and bolts, reducing potential points of failure and ensuring a more reliable product. The integration of metal inserts within plastic also improves resistance to wear, impact, and thermal expansion, making it suitable for harsh operating environments.

Cost Reduction and Efficiency in Production

One of the major benefits of insert injection molding is its ability to reduce overall production costs. By incorporating inserts directly into the molding process, manufacturers eliminate secondary assembly steps such as ultrasonic welding, adhesives, or mechanical fastening. This reduces labor costs, material waste, and potential assembly errors, resulting in a more cost-effective and efficient production line. Additionally, automation in insert placement further streamlines the process, enabling high-volume manufacturing with minimal operator intervention. For industries requiring large-scale production of components with embedded inserts, this method offers significant savings in time and resources.

Versatility in Material Selection and Design

The injection molding inserts process offers unmatched versatility in terms of material selection and design possibilities. Manufacturers can choose from a wide range of plastic resins, including high-performance engineering plastics like PEEK, polycarbonate, and nylon, which provide excellent chemical resistance, thermal stability, and mechanical strength. Additionally, inserts can be made from various metals, such as brass, aluminum, and stainless steel, depending on the functional requirements of the final product. The ability to customize insert placement, size, and orientation allows engineers to design complex geometries that would be difficult or impossible to achieve using conventional manufacturing methods.

Applications of Injection Mold Inserts Across Industries

Automotive Industry

Injection mold inserts are widely used in the automotive sector to enhance the durability and functionality of plastic components. Common applications include dashboard components, engine mounts, sensor housings, and fasteners. By embedding threaded inserts within plastic parts, manufacturers ensure secure and long-lasting connections that can withstand vibration, temperature fluctuations, and mechanical stress. This method also helps reduce vehicle weight by replacing heavier metal components with reinforced plastic alternatives, improving fuel efficiency without compromising performance.

Medical Device Manufacturing

In the medical industry, precision and reliability are paramount, making injection molding inserts an ideal solution for producing complex medical devices. Applications include surgical instruments, catheter components, implantable devices, and diagnostic equipment. The ability to incorporate metal or ceramic inserts within biocompatible plastics ensures that medical devices meet stringent regulatory standards while maintaining durability and safety. Additionally, injection molding threaded inserts are often used in medical device assembly to provide secure attachment points for screws, tubing, or other components.

Electronics and Consumer Goods

Insert injection molding is extensively utilized in the production of electronic components and consumer products. Many electronic housings and enclosures require embedded inserts to provide electrical conductivity, EMI shielding, or structural support. Examples include smartphone casings, circuit board mounts, and power connectors. By integrating metal inserts within plastic enclosures, manufacturers can achieve superior durability while maintaining lightweight and cost-effective designs. Additionally, the process is commonly used in the production of durable consumer goods such as kitchen appliances, power tools, and sporting equipment, where strength and longevity are essential.

Injection Molding Threaded Inserts for Secure Fastening

One of the most common applications of insert molding injection is the incorporation of threaded inserts into plastic components. Injection molding threaded inserts allow for the secure attachment of screws, bolts, or other fasteners, making them ideal for products that require repeated assembly and disassembly. These inserts are available in a variety of materials, including brass, stainless steel, and heat-resistant alloys, depending on the mechanical and environmental requirements of the application. The advantage of using injection molding threaded inserts is that they provide strong, wear-resistant threading within plastic parts, preventing stripping or loosening over time. This makes them particularly useful in industries such as automotive, aerospace, and industrial machinery, where secure fastening is critical to product performance.

Challenges in Insert Molding Injection and How to Overcome Them

One of the key challenges in insert molding injection is ensuring accurate placement and alignment of inserts within the mold cavity. Even minor misalignment can lead to defects such as improper bonding, weak structural integrity, or dimensional inaccuracies. To overcome this challenge, manufacturers use automated insert placement systems equipped with robotic arms and vision-guided positioning technology. These systems ensure precise alignment, reducing human error and improving overall process consistency.

Material Compatibility and Bonding Issues

Achieving strong adhesion between the plastic resin and the insert material is crucial for ensuring part durability. Some materials may have poor bonding characteristics, leading to weak interfaces or delamination over time. To address this, manufacturers use surface treatments such as knurling, threading, or chemical etching to improve mechanical interlocking between the insert and the surrounding plastic. Additionally, selecting the right combination of plastic resin and insert material enhances compatibility and ensures optimal performance.

Thermal Expansion and Cooling Considerations

Differences in thermal expansion between metal inserts and plastic can lead to internal stresses, warping, or cracking. Proper mold design, optimized cooling channels, and controlled injection parameters help mitigate these effects. Engineers often conduct mold flow analysis simulations to predict and compensate for potential thermal expansion mismatches, ensuring a defect-free final product.

Insert injection molding is a highly efficient and versatile manufacturing technique that offers numerous advantages across a wide range of industries. By embedding metal or composite inserts into plastic components, this process enhances strength, durability, and functionality while reducing production costs and assembly time. From automotive and medical devices to consumer electronics and industrial applications, insert molding injection continues to be a preferred solution for producing high-performance plastic parts with integrated inserts. As technology advances, innovations in automation, material science, and mold design will further improve the efficiency and capabilities of this process, enabling even more complex and durable product designs.

Innovations in Insert Injection Molding Technology

As manufacturing technology evolves, insert injection molding continues to advance with new materials, automation systems, and precision molding techniques. One of the most significant innovations is the integration of Industry 4.0 and smart manufacturing principles, allowing real-time monitoring of the molding process. Modern injection molding machines now feature sensors that track key parameters such as pressure, temperature, and injection speed. This data-driven approach helps manufacturers detect potential defects early, optimize cycle times, and improve product consistency. Additionally, AI-powered predictive maintenance ensures that mold tools and inserts remain in optimal condition, reducing downtime and prolonging mold life. Another major innovation in insert molding injection is the use of multi-shot and overmolding processes. Multi-shot molding allows for the creation of complex components with multiple materials or colors in a single cycle. This technique is particularly useful for applications requiring soft-touch grips, vibration-resistant coatings, or ergonomic designs. Overmolding, on the other hand, enables manufacturers to bond different materials together, such as thermoplastic elastomers over rigid plastics or metal components. By combining insert molding with these advanced techniques, manufacturers can create highly functional and aesthetically appealing products without additional assembly steps.

Material science has also played a crucial role in the evolution of injection molding inserts. New high-performance thermoplastics, including reinforced composites and bio-based resins, offer superior strength, heat resistance, and environmental sustainability. For example, engineering plastics such as PEEK, PPS, and polycarbonate provide excellent mechanical properties and chemical resistance, making them ideal for demanding applications in aerospace, automotive, and medical industries. Advances in insert materials, such as lightweight aluminum or carbon fiber-reinforced composites, have further expanded the possibilities for innovative product designs.

The Role of Automation in Insert Molding Injection

Automation has become an integral part of modern insert injection molding, improving efficiency, accuracy, and production speed. In high-volume manufacturing, robotic systems are used to precisely place inserts into the mold cavity before injection. These robots operate with high repeatability, ensuring consistent part quality and reducing the risk of misalignment or defects. Automated insert placement is particularly beneficial for complex components with multiple inserts, where manual handling could lead to inconsistencies. In addition to insert placement, automation also enhances post-molding processes such as part removal, trimming, and quality inspection. Robotic arms equipped with vision systems can quickly identify defective parts, ensuring that only high-quality components move forward in the production line. This level of automation reduces labor costs, increases throughput, and minimizes human error. For industries requiring stringent quality control, such as medical devices and aerospace components, automated insert molding injection provides a reliable solution for producing defect-free parts.

Sustainability in Insert Injection Molding

Sustainability has become a key focus in modern manufacturing, and insert molding injection contributes to eco-friendly production in several ways. By integrating metal inserts directly into plastic parts, this process reduces the need for additional fasteners, adhesives, and secondary assembly steps, leading to less material waste. Additionally, many manufacturers are adopting recycled and bio-based plastics to further reduce their environmental impact. One of the main advantages of insert molding is its ability to extend the lifespan of plastic components by reinforcing them with durable metal inserts. This results in longer-lasting products that require fewer replacements, ultimately reducing plastic waste. Some manufacturers have also implemented closed-loop recycling systems, where excess plastic from the molding process is collected, reprocessed, and reused in future production cycles.

Energy efficiency is another important factor in sustainable manufacturing. Modern injection molding machines are designed with energy-saving features such as servo-driven pumps, optimized cooling systems, and low-energy heating elements. These innovations help reduce overall energy consumption while maintaining high production efficiency. As the industry continues to focus on sustainability, insert injection molding will play a vital role in creating durable, lightweight, and environmentally friendly products.

Managing Thermal Expansion and Material Compatibility

One of the challenges in insert molding injection is managing thermal expansion differences between plastic and metal inserts. Since metals expand and contract at different rates than plastics, improper material selection or molding conditions can lead to stress fractures, warping, or weak bonding. To overcome this issue, engineers carefully select materials with compatible thermal expansion coefficients and use specialized mold designs that accommodate material movement during the cooling phase. Surface preparation of inserts is another critical factor in achieving strong adhesion. Inserts may undergo treatments such as knurling, sandblasting, or chemical etching to improve bonding with the surrounding plastic. For applications requiring superior mechanical interlocking, inserts with undercuts or textured surfaces can be designed to enhance retention strength.

Mold Wear and Maintenance

Repeated molding cycles with metal inserts can cause significant wear on the mold, particularly in areas where the inserts make direct contact with the mold cavity. Over time, this wear can lead to dimensional inconsistencies, flash formation, and reduced part quality. To extend mold life, manufacturers use hardened tool steels, wear-resistant coatings, and precision machining techniques. Regular maintenance and periodic mold inspections also help prevent unexpected failures and costly production downtime.

Cooling system efficiency is another key consideration in high-volume insert molding operations. Inserts can retain heat longer than the surrounding plastic, leading to uneven cooling and longer cycle times. Advanced mold designs incorporate conformal cooling channels, which optimize heat dissipation and reduce cycle time while maintaining part integrity.

Comparing Insert Molding to Alternative Manufacturing Methods

While insert injection molding is a highly efficient process, it is important to compare it to alternative methods such as overmolding, ultrasonic welding, and die casting. Overmolding is commonly used for bonding soft materials like rubber onto rigid plastic or metal substrates, providing enhanced grip, vibration resistance, and aesthetic appeal. However, overmolding may not be as effective for applications requiring embedded mechanical fasteners or precision alignment of metal components. Ultrasonic welding is another alternative that joins plastic parts together using high-frequency vibrations. This method is often used for assembling enclosures, medical devices, and electronic housings. While ultrasonic welding offers strong bonds and minimal material waste, it requires separate manufacturing steps and may not provide the same level of structural integration as insert molding.

For metal components, die casting is a widely used process that creates high-precision parts by injecting molten metal into a mold. While die casting produces strong and durable metal parts, it is not suitable for applications requiring a combination of plastic and metal components in a single unit. Some manufacturers use a hybrid approach, combining insert molding with die casting mold techniques to create multi-material components that leverage the advantages of both processes.

Future Outlook for Insert Injection Molding

As technology continues to advance, the future of insert injection molding looks promising. The integration of artificial intelligence, real-time monitoring, and digital twin simulations will further enhance process control and defect detection. Smart manufacturing systems will enable fully automated production lines capable of producing complex parts with minimal human intervention. Sustainability will also drive innovation in insert molding materials, with increased use of biodegradable plastics, recycled content, and energy-efficient machinery. The demand for lightweight and high-performance materials in industries such as automotive, aerospace, and medical devices will continue to push the boundaries of insert molding capabilities.  Ultimately, insert injection molding remains a cornerstone of modern manufacturing, offering unparalleled versatility, efficiency, and cost-effectiveness. Whether for producing durable fasteners, electronic enclosures, or precision medical components, this technology will continue to evolve and meet the growing demands of the industry.
